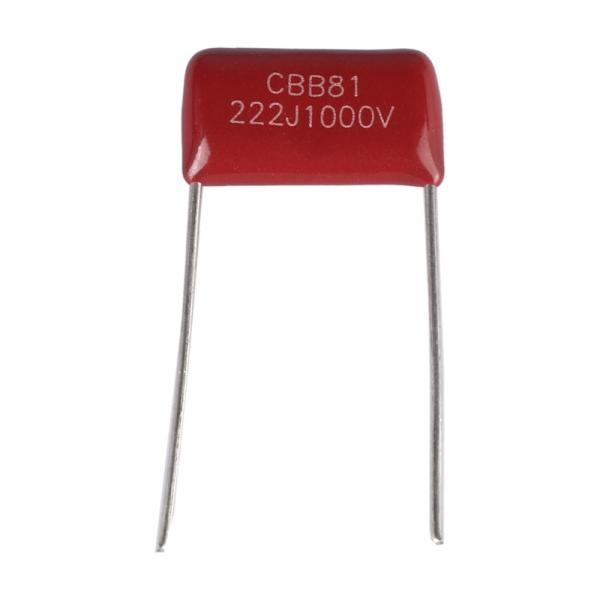

0.0022uF Metallized Polypropylene Film Capacitor CBB81 222J 1000V
Product Details:
Item: CBB81 222J1000V
Capacitance:0.0022uF
Tolerance: +/-5% (J)
Voltage:1000V
Pitch:15mm
Operating Temperature:-40~+85C
Material: Metallized Polypropylene( MPP)
CBB81 capacitor is a kind of capacitor with metallized polypropylene film and aluminum foil in series, non-inductive winding, and wrapped in epoxy resin. It is very large and can achieve very high voltage, which is the most frequently used capacitor on the high voltage circuit.
Feature
- internal series structure
- low loss at high frequency
- strong overcurrent ability
- high insulation resistance
- long life, stable temperature
- loss Angle tangent decreases with the increase of working frequency
Application:
Electric mosquito bat, Switching power supply, Ultraviolet disinfection lamp, Ultrasonic mask electrical circuit, etc.
Specifications:
| Referance Standard | GB10188 (IEC60384-13) | |
| Climatic Category | 40/85/21 |
| Rated Voltage | 800V, 1000V, 1200V, 1600V, 2000V |
| Capacitance Range | 0.001~0.47uF |
| Capacitance Tolerance | ±5%(J) ±10%(K) |
| Voltage proof | 2UR(5s) |
| Dissipation Factor | ≤0.08%(20℃, 1kHz) |
| Insulation Resistance | ≥30000MΩ (CR≤ 0.1 uF) ≥3000S (CR>0.1uF) |

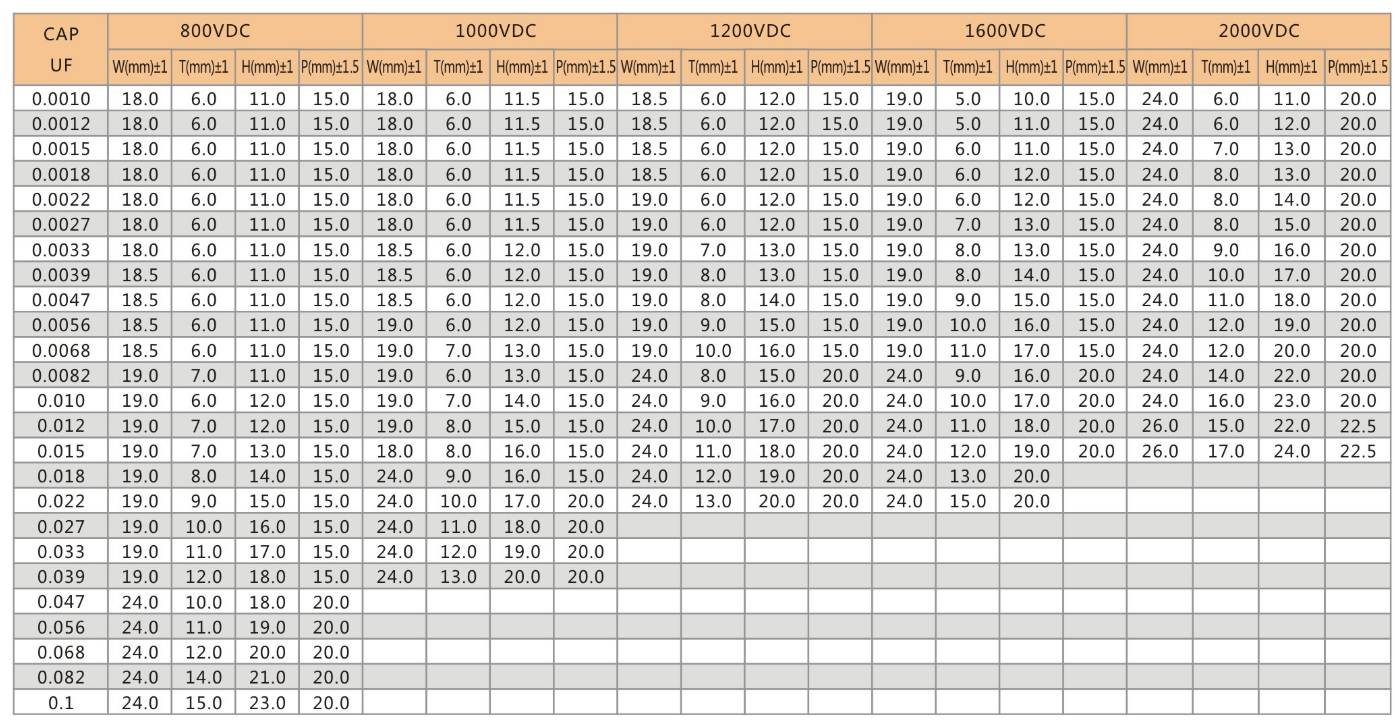

Dimensions for reference:
OUTSIDE MARKS FOR CAPACITANCE:
| PF | 100 | 1000 | 10000 | 100000 | 1000000 |
| NF | 0.1 | 1.0 | 10.0 | 100.0 | 1000.0 |
| μF | 0.0001 | 0.001 | 0.01 | 0.1 | 1.0 |
| Code | 101 | 102 | 103 | 104 | 105 |
