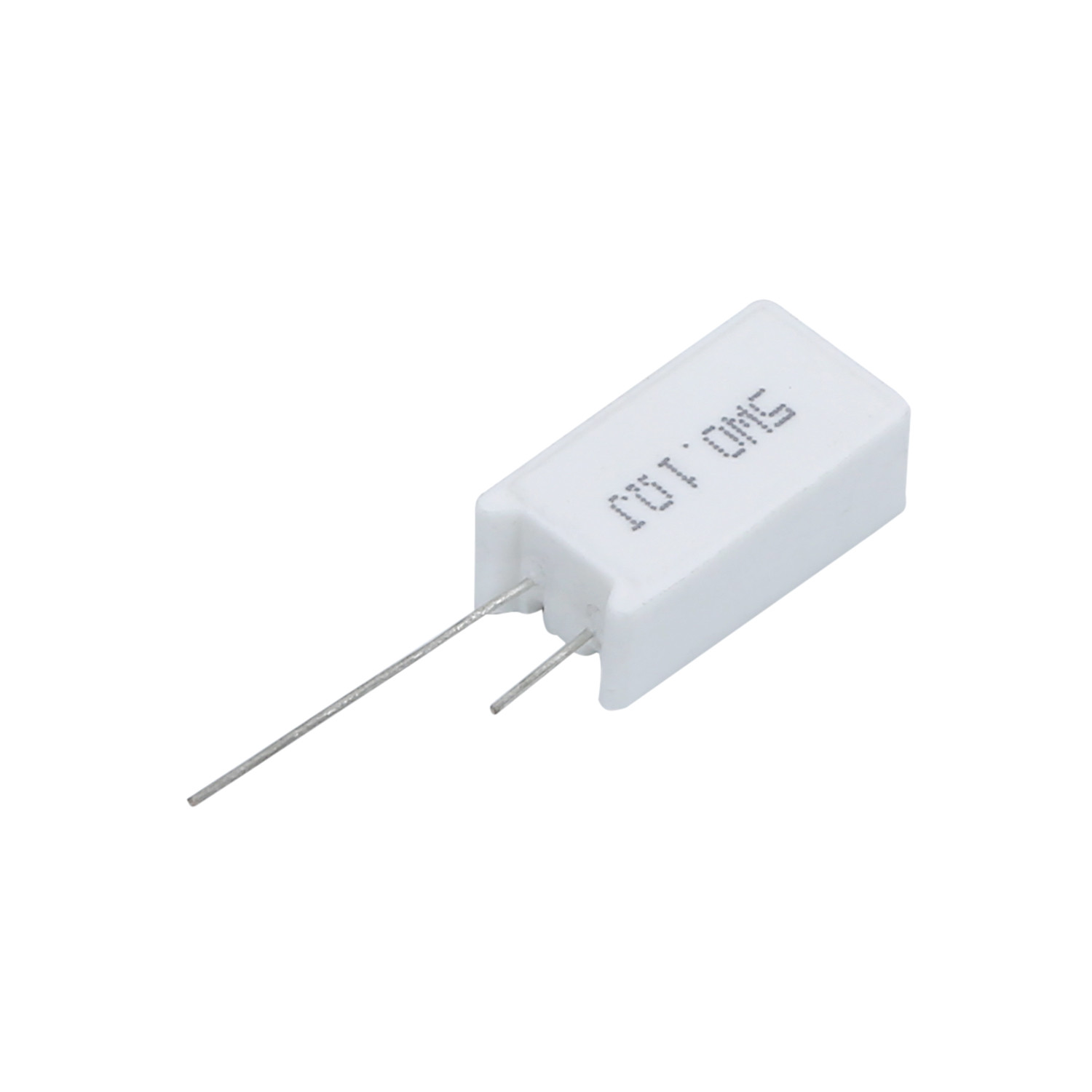

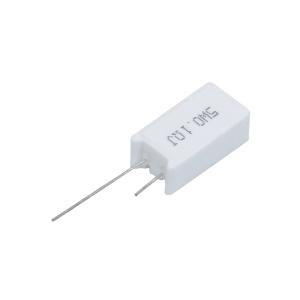

SQP Horizontal Cenment Resistor 5% 0.1Ω~500KΩ 5W 7W 15W 25W 30W
Feature:
High Load Stable high voltage performance Heat-sink performance, non-flame RoHS compliant, hlogen free, lead free
Application:
Entertainmentsystem, Power supply,Meter/Instruments system
Electrical Characteristics
M type

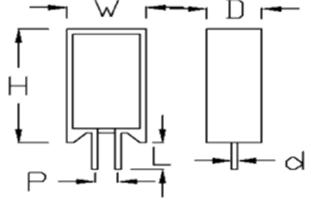

| Rated Power At 70℃ | Max Working Voltage | Max Overload voltage | Insulation Voltage | Resistance Range | Operating Temperature | H±1.5 | W±1 | D±1 | P±0.5 | d±0.5 | L±1.5 |
| 3W | 350V | 600V | 1KV | 0.1Ω~820KΩ | -55℃~+275
℃ | 25 | 12 | 8 | 4 | 3.5 | 0.75 |
| 5W | 350V | 600V | 1KV | 0.1Ω~820KΩ | 25 | 13 | 9 | 4 | 3.5 | 0.75 |
| 7W | 500V | 700V | 1KV | 0.1Ω~820KΩ | 39 | 13 | 9 | 4 | 3.5 | 0.75 |
| 10W | 750V | 850V | 1KV | 0.1Ω~820KΩ | 51 | 13 | 9 | 4 | 3.5 | 0.78 |
| 15W | 1KV | 1KV | 1KV | 0.1Ω~820KΩ | 51 | 13 | 9 | 4 | 3.5 | 0.78 |
| 20W | 1KV | 1KV | 1.5KV | 0.1Ω~820KΩ | 35 | 16 | 12 | 8 | 3.5 | 0.78 |

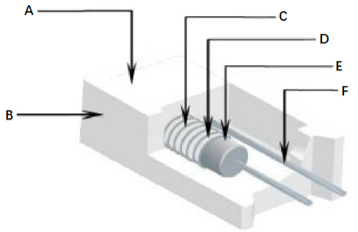

Outdrawing and Constraction
| NO. | Components |
| A | Padding materials |
| B | Ceramic shell |
| C | Resistance wire or ceramic core |
| D | Fiberglass or ceramic core or resistors film |
| E | Iron cap |
| F | Tinned copper lead wire |
How to order
| TMRSQ02 | - | 1 2 3 | 4 | 5 6 7 | 8 | 9 |
| ↓ | | ↓ | ↓ | ↓ | ↓ | ↓ |
| | | | | | | | | | | | |
| Produce Code TMRSQ02: SQM Vertical Cenment Resistor | | Resistance Value Code: Three digits: The first two digits are significant figures and the third one denotes number of zeros. 394=390KΩ | Tolerance J=±5% K=±10% | Rated Power: Two digits or three digits: 01=1W,30=30W,50=50W 70=70W…. 100=100W 200=200W 250=250W ... | Packaging T:tape&reel B:bulk | Type: M,Z,ZA,H,HA,G |
| - |
| |
