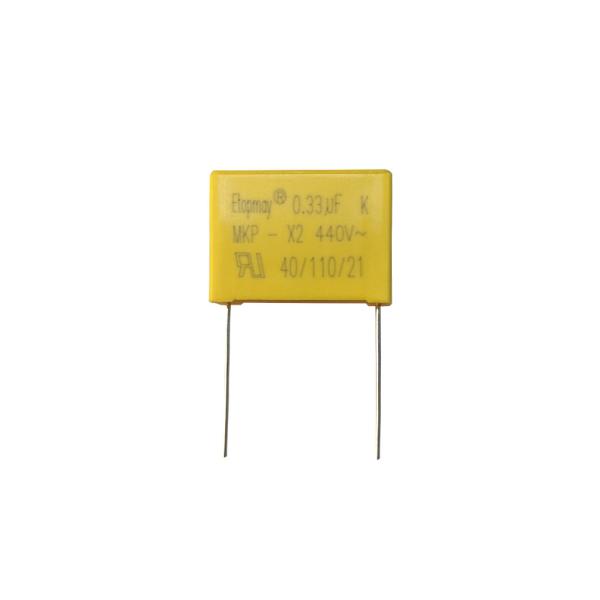

0.33uF Polypropylene Film Capacitor 440VAC P15mm MKP X2 Capacitor X1Y2 Safety

  • 1
  • 2
  • 3

Brand Name : ETOPMAY

Model Number : TMCF18

Certification : SGS( RoHS), UL

Place of Origin : China

MOQ : 5000pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000000pcs per month

Delivery Time : 12~15 working days

Packaging Details : Bulk, Tape

Capacitance : 0.33uF

Voltage : 440VAC

Pitch : 15mm

Tolerance : +/-10%

Weight : 18mm

Height : 14.5mm

Thickness : 8.4mm

Climatic Category : 40/110/21

Contact Now

Polypropylene Film Capacitor MKP Capacitor X2 0.33uF 440VAC P15mm

The full name of X capacitor is generally called: X2/X1(MPX/MKP) capacitor to suppress the electromagnetic interference of the power supply. The main functions in the circuit are: power supply cross-line circuit, EMI filtering, spark elimination circuit and so on to ensure that the finished electronic products meet EMC requirements.

Features

  • Box type provides the identical outer appearance
  • Very Low Loss at high frequency, suitable for high current
  • High Insulation resistance, long life due to self-healing effect
  • Withstanding 2.5kV impulse voltage, Class X2
  • As an across-the-line type noise suppression capacitor, and Suitable for AC purpose

Outline Drawing

Non-inductive, wound with metallized polypropylene film as the

dielectric/electrode with copper-clad steel leads and encapsulated in a plastic case sealed with epoxy resin.

Specifications

Reference Standard GB/T14472-1998 (IEC 60384-14)

0.33uF Polypropylene Film Capacitor 440VAC P15mm MKP X2 Capacitor X1Y2 Safety
Climatic Category 40/110/21
Rated Voltage 440VAC
Capacitance Range 0.33uF
Capacitance Tolerance 10%(K)
Voltage Proof 4.3UR(5s)
Dissipation Factor

≤0.15% CR ≤ 1.0uF

≤0.3% CR >1.0uF(20℃ ,10KHz)

Insulation Resistance

(20℃ ,1min)

≥30000MΩ (CR≤ 0.33 uF)

≥10000S (CR＞0.33 uF)

Dimensions

Item W±0.5 H±0.5 T±0.5 D±0.05 L±1 P±0.5
X2 334K/440VAC 26.5 19.0 10 0.8 22 22.5

Part Number Naming Rule:

TMCF 18 _ 334 K 440V P15 B
Product Category Sub-Series 　 Capacitance Tolerance-10% Voltage Pitch Packing-bulk

0.33uF Polypropylene Film Capacitor 440VAC P15mm MKP X2 Capacitor X1Y2 Safety

0.33uF Polypropylene Film Capacitor 440VAC P15mm MKP X2 Capacitor X1Y2 Safety

0.33uF Polypropylene Film Capacitor 440VAC P15mm MKP X2 Capacitor X1Y2 Safety

0.33uF Polypropylene Film Capacitor 440VAC P15mm MKP X2 Capacitor X1Y2 Safety

Our series of strong products of capacitors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor

More details, Kindly contact us freely!
