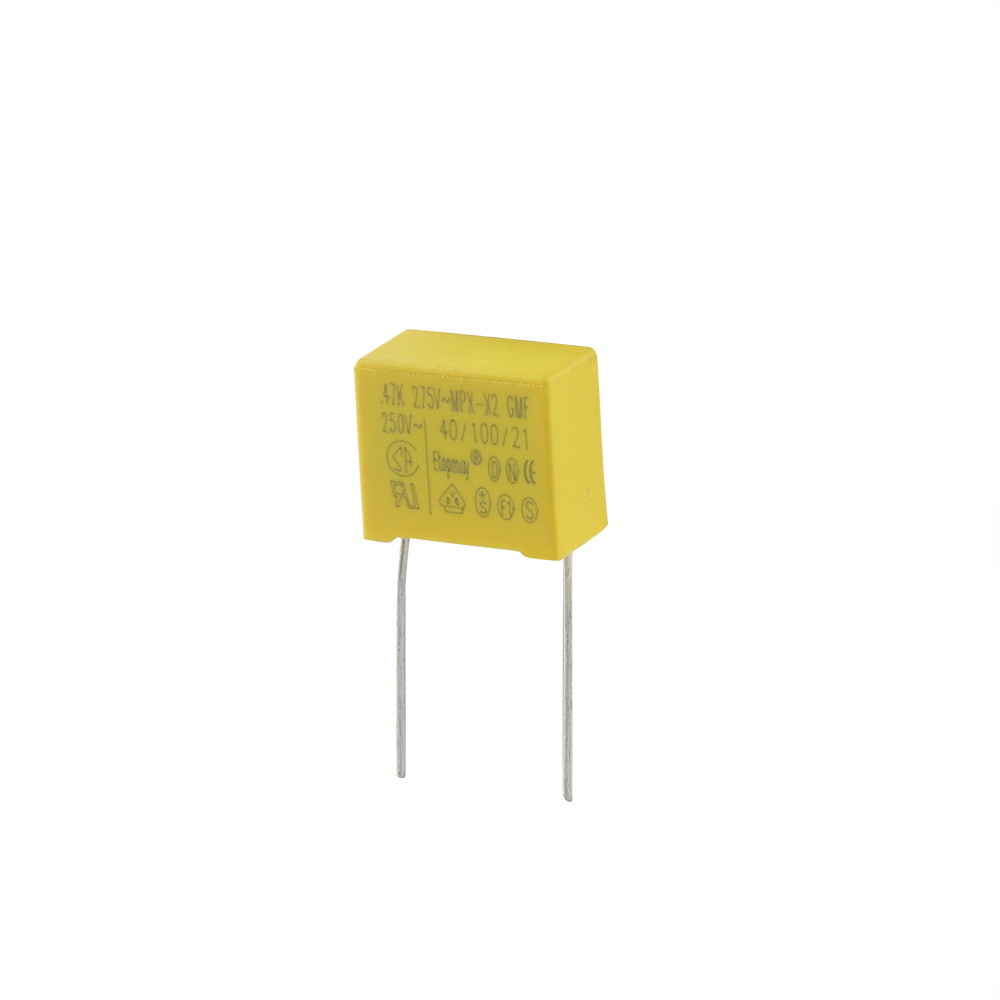

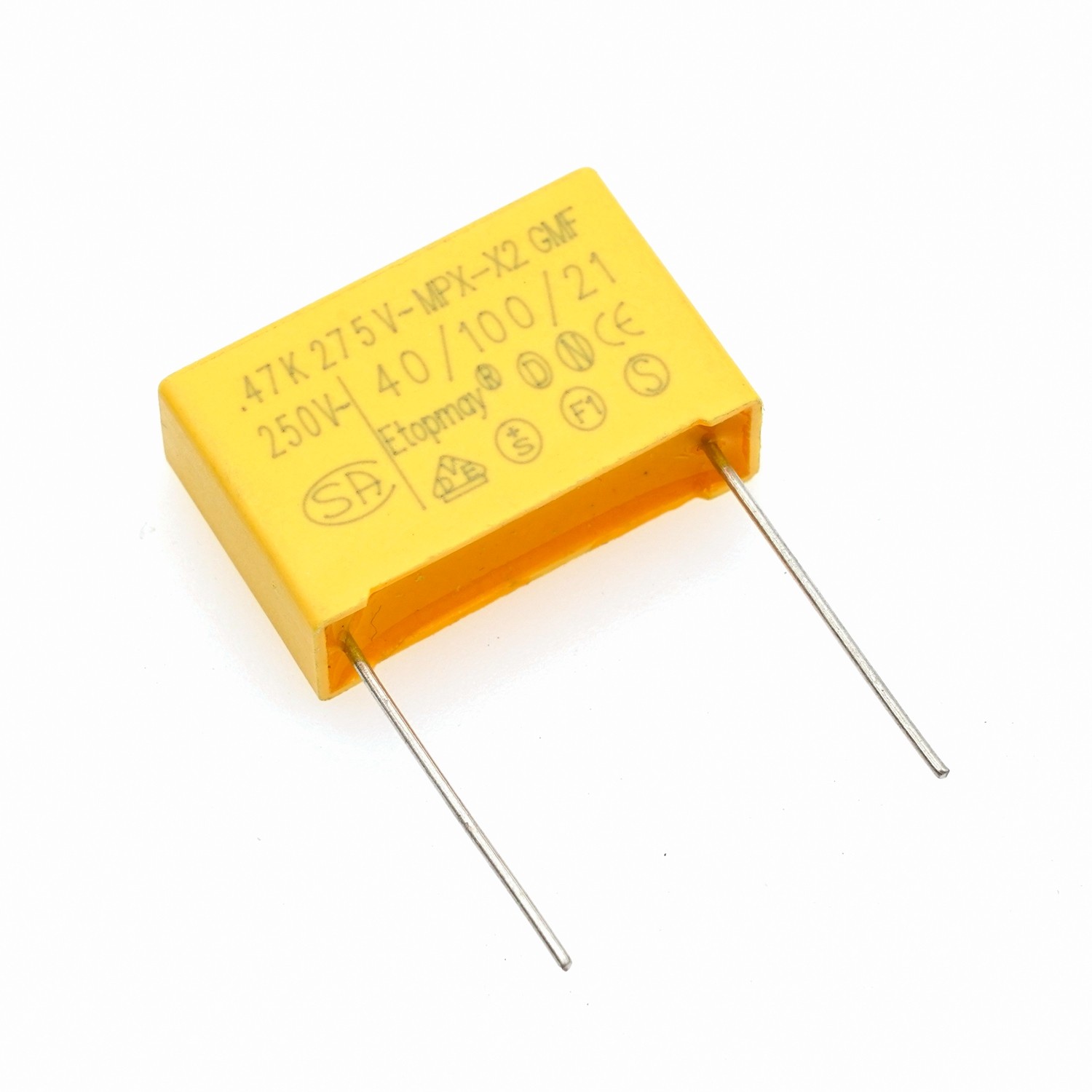

0.47uF 275VAC MKP X2 Film Capacitor P15mm 22.5mm For Home Applications

  • 1
  • 2
  • 3

Brand Name : ETOPMAY

Model Number : TMCF18

Certification : SGS( RoHS), UL

Place of Origin : China

MOQ : 5000pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000000pcs per month

Delivery Time : 12~15 working days

Packaging Details : Bulk, Tape

Capacitance : 470nF

Voltage : 275VAC

Pitch : 15mm, 22.5mm

Tolerance : +/-10%

Contact Now

0.47uF 275VAC P15mm 22.5mm MKP X2 Film Capacitor for Home Applications

Features

  • Box type provides the identical outer appearance
  • Very Low Loss at high frequency, suitable for high current
  • High Insulation resistance, long life due to self-healing effect
  • Withstanding 2.5kV impulse voltage, Class X2
  • As an across-the-line type noise suppression capacitor, and Suitable for AC purpose

Outline Drawing

Non-inductive, wound with metallized polypropylene film as the

dielectric/electrode with copper-clad steel leads and encapsulated in a plastic case sealed with epoxy resin.

Specifications

Reference Standard GB14472(IEC60384-14)

0.47uF 275VAC MKP X2 Film Capacitor P15mm 22.5mm For Home Applications
Operating Temperature -40℃~+100℃
Rated Voltage 275VAC
Capacitance Range 0.47uF
Capacitance Tolerance 10%(K)
Withstand voltage 1800VDC(2s)CR≤1uF
4.3UR VDC(2s) CR＞1uF
Dissipation Factor ≤0.1% (20℃ ,1KHz)

Insulation Resistance

(20℃ ,1min)

≥15000MΩ (C≤ 0.33 uF)

≥5000 MΩ·uF/C (CR＞0.33 uF)

Dimensions

Item W±0.5 H±0.5 T±0.5 D±0.05 L±1 P±0.5
X2 474K/275VAC 26.5 19 10 0.8 22 22.5
X2 474K/275VAC 18 15.5 9.5 0.8 22 15

0.47uF 275VAC MKP X2 Film Capacitor P15mm 22.5mm For Home Applications0.47uF 275VAC MKP X2 Film Capacitor P15mm 22.5mm For Home Applications
0.47uF 275VAC MKP X2 Film Capacitor P15mm 22.5mm For Home Applications

Shenzhen Topmay Electronic Co., Ltd is specialized in manufacturing a wide range of capacitors and resistors. The company headquarter is located in Shenzhen, a flourishing southern city that is recognized as one of the economic centers of China. Since established in 1998, Topmay deal globally based on the most competitive price and excellent service. Through many years’ hard work, it has gradually grown up to be an outstanding enterprise in the field of capacitors and resistors.

By closely following the latest market trends, we provide “one-stop” capacitors and resistors solution, which are applied in almost all kinds of PCB, communications, lighting, home appliance, industrial control, green energy, etc.

Our series of strong products of capacitors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor

0.47uF 275VAC MKP X2 Film Capacitor P15mm 22.5mm For Home Applications

More details, Kindly contact us freely!
